Flexible Innovative Solutions for Safety-Critical Applications

We deliver precision.

From initial design to qualification to aftersales service, we achieve the competitive price, performance, and quality levels aerospace leaders require. We’re the preferred supplier of servo valves anywhere on airplanes, helicopters, and business jets where robust design is required for high-temperature and high-vibration applications quality levels civil and military leaders require.

Electro-hydraulic & Pneumatic Servo Valve Technology

Servotronics specializes in meeting the performance, quality, and commercial specifications of our aerospace customers with our premier single and two-stage servo valves. Our electro-hydraulic and pneumatic technology is proven in a range of safety-critical applications:

  • Environmental Control Systems (ECS)

    The ECS is one of civil aircraft's largest power consumption and nonpropulsive systems. It provides air supply, thermal control, and cabin pressurization for the crew and passengers. The ECS in conventional aircraft is designed to use the bleed air from the engine to achieve the required temperature and pressure of the cabin air.

    What it does:

    In the ECS, pneumatic servo valves convert an electrical input signal from a controller to modulate a pneumatic flow supply, which then controls the position/movement of a valve or actuator within the ECS.

    Types of servo valves used in the system:

    -Cabin Temperature Control Valve

    -Bleed Air Valve

    -Bleed Isolation Valve

    -Heat Exchanger Valve

  • Fuel Metering Unit (FMU)

    The FMU controls a precise amount of fuel to engine combustors and alters the position of various devices to increase or decrease fuel flow.

    What it does:

    In the FMU, servo valves convert an electrical input signal from a controller to modulate a fluid flow supply, which controls the position/movement of a valve or actuator within the FMU.

    Types of servo valves used in the unit:

    -Shut-Off Valve

    -Fuel Metering Valve

    -Flow Control Valve

    -Bleed Valve

  • Hydromechanical Unit (HMU)

    The HMU controls multiple systems, including the fuel metering unit, variable stator vanes, turbine active-clearance controls, and fuel nozzle staging.

    What it does:

    In the HMU, pneumatic and hydraulic servo valves are used to convert an electrical input signal from a controller to modulate a fluid flow supply, which then controls the position/movement of a valve or actuator within the HMU.

    Types of servo valves used in the unit:

    -Active Clearance Control Valve

    -Variable State Vane Actuator Valve

    -Bleed Valve

  • Auxiliary Power Unit (APU)

    The APU are small gas turbine engines generally located in the aircraft tail. They allow an aircraft to operate autonomously without reliance on ground support equipment to start the main engines, provide electrical power, and supply inflight backup power.

    What it does:

    In the APU, servo valves are used to convert an electrical input signal from a controller to modulate a fluid flow supply, which then controls the position/movement of a valve or actuator within the APU.

    Types of servo valves used in the unit:

    -Shut-Off Valve

    -Fuel Metering Valve

    -Flow Control Valve

    -Bleed Valve

  • Anti-Icing, De-Icing, and Ice Protection Systems

    Most Anti-Icing Systems direct hot engine bleed air to critical aircraft surfaces such as the engine nacelles, wings, and propellers to evaporate water when it strikes the protected surface to prevent ice from forming.

    What it does:

    Servo valves convert an electrical input signal from a controller to modulate a pneumatic flow supply, which then controls the position/movement of a valve or actuator within the Anti-icing, De-Icing and Ice Protection System.

    Types of servo valves used in the unit:

    -Pressure Regulating Valve

    -Shut-off Valve

    -Flow Control Valve

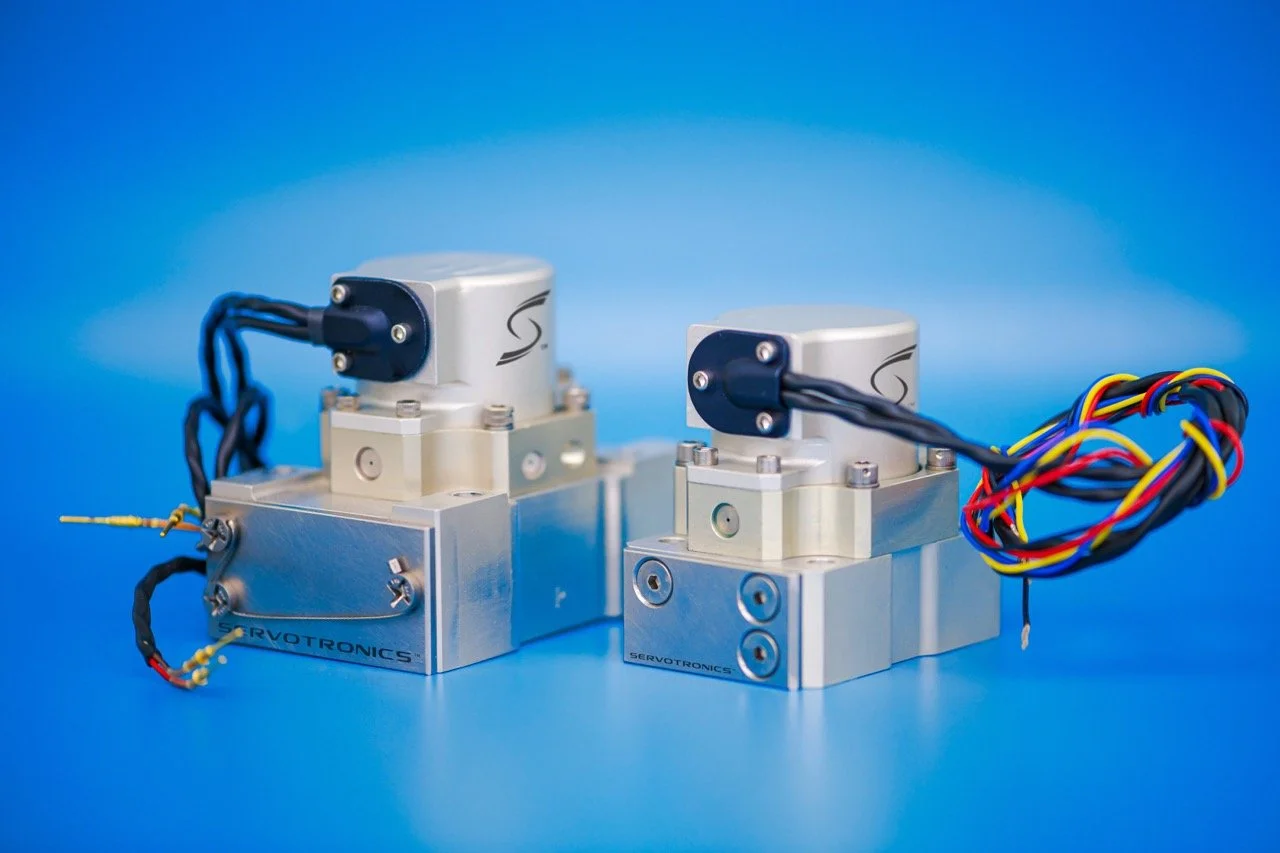

Premier
Single & Two-Stage
Servo Valves

System

Fuel

Hydraulic

Pneumatic

Architecture

Nozzle Flapper

Shear Orifice (Clevis)

Jet Pipe

Functionality

Proportional Control

Two Position Control

Displacement Torque Motors

Servotronics Products

Our products yield industry-leading performance in high-temperature and high-vibration applications, and are contamination resistant without requiring damping fluid.

Core Capabilities

Operating Temps:

-65 to 450˚F (-54 to 232˚C)

Power:

1.2 in lbs torque (0.14 Nm)

Encapsulated Design:

1500 vac dielectric and 500 vdc insulation

Coil limiting factors:

Up to 4
Dissipation: Up to 7 watts
Rated Current: Up to +/-300 mA
Resistance: 10-1200 Ω

Pressures

Operating:

5 to 3500 psig (241 bar)

Proof:

Up to 5000 psig (345 bar)

Burst:

Up to 8000 psig (552 bar)

Performance

Vibration:

Up to 100 G (20-4000 Hz)

Hysteresis:

<2% rated current

Threshold:

<0.5% rated current

Our focus is on your requirements.

If your project requires servo valve precision, we partner with you to optimize a cost-effective solution. We take a different approach than catalog suppliers and work collaboratively with our customers’ engineers to precisely configure our flexible building blocks to meet your specifications.
